SPECIFICATIONS
Auto Focus: No
Brand Name: GXIVISION
Certification: CE,FCC,RoHS
Choice: yes
Dimensions (L x W x D)(mm): 100mmX22mm,other size can be customized
Features: 3D Stereo Binocular synchronized Same Frame
High-concerned chemical: None
Image Sensor: CMOS
Interface Type: USB
M12 Lens: Fixed Focus
Max. Resolution: 2560*720,2560x720@30fps
Model Number: LSM22100.
Origin: Mainland China
Package: Yes
Pixels: 2 Mega
Power Supply(V): DC 5V
Special Features: MJPEG and YUY2
Supported Mobile Systems: Android
Supported Operating Systems: Windows, Linux, Android, Mac,etc
Type: USB Camera Module Dual Lens 720p
Video Compression Format: MJPEG
semi_Choice: yes

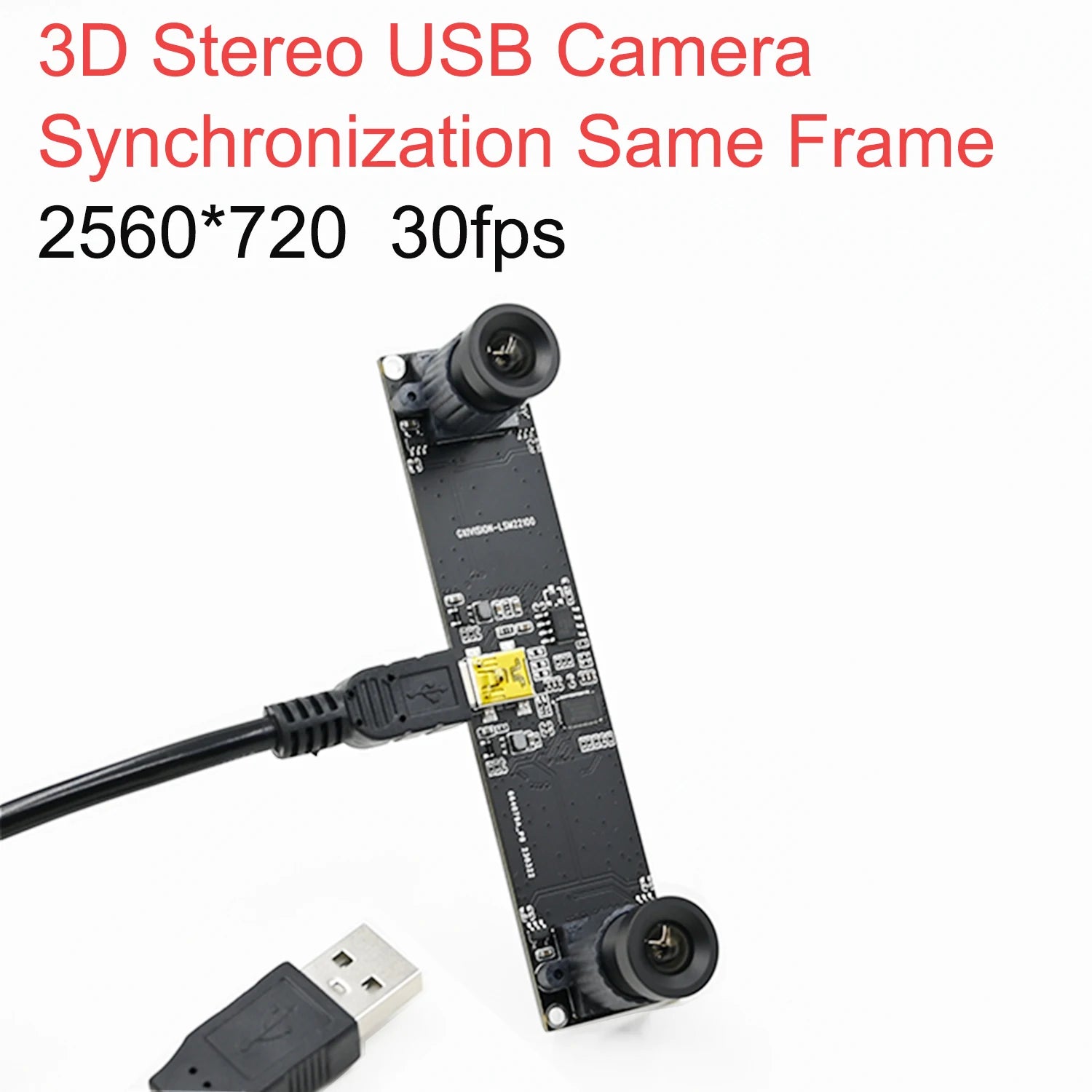

GXIVISION,USB Camera Module Dual Lens 720P ,Webcam Fixed Focus ,Synchronization Same Frame,2560x720, 30fps ,For 3D Modeling VR Ranging,For Windows/Linux/Android Raspberry Pi
Package includes:

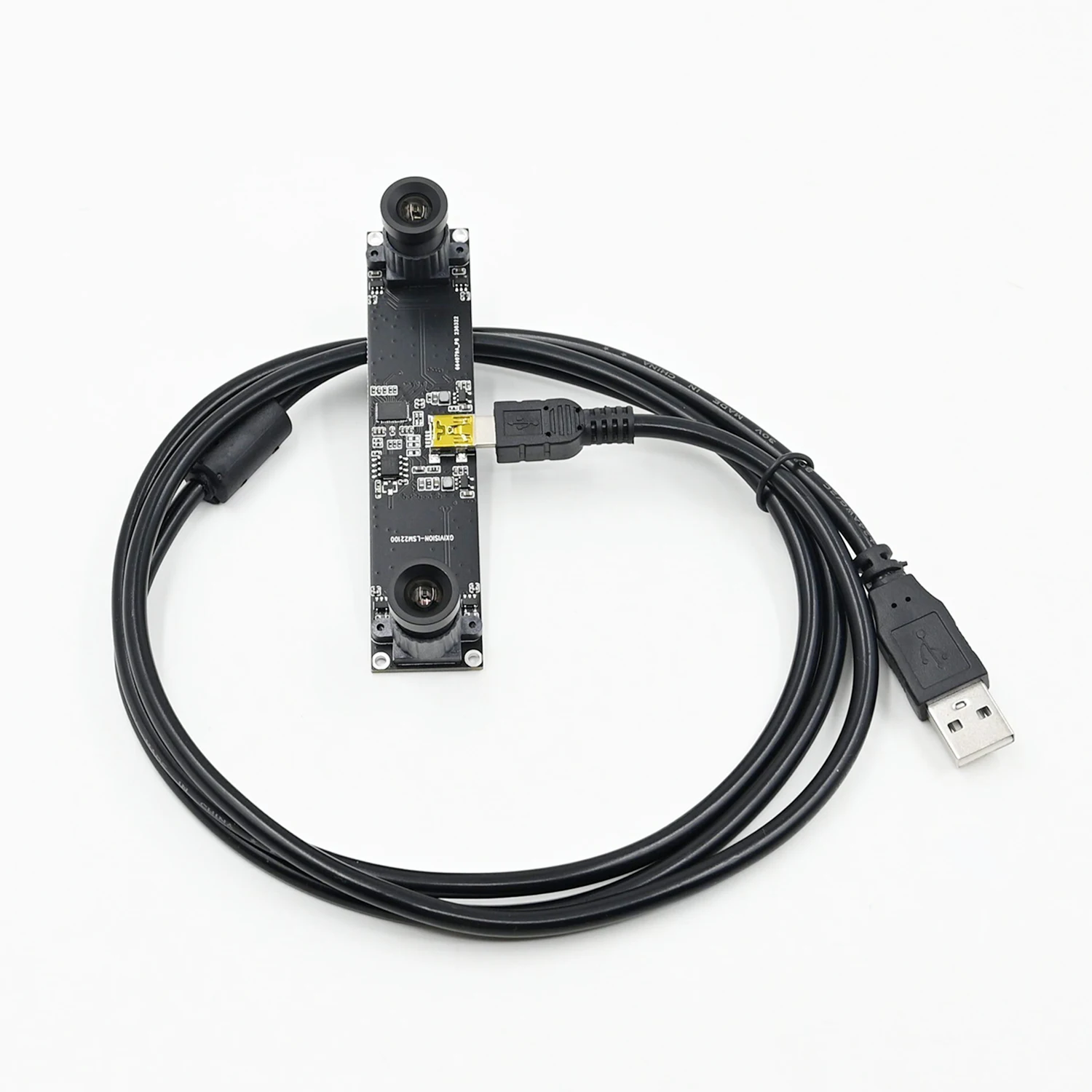

1) 1PC usb camera module with dual lens
2) 1PC 1.5M usb cable
Features：
HD: This small usb camera module with dual lens for sharp image and accurate color reproduction, still picture resolution: 2560x 720 Max.
Synchronization Same Frame：Same frame rate and same resolution at same time for each camera .The two sensors synchronously synthesize one frame of data for output.
Angle: Mounted a High quality Focal length 4.2mm,3mm,2.4mm or 1.3mm M12 lens with IR filter, provides a wilder Field of View.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
High Frame Rates: MJPG 2560*720 30fps;YUY2 1280*720 5fps; （Binocular）
Support OS: Android Linux Windows MAC OS
Applications: This tiny 100mmx22mm camera board can be installed in most narrow position, highly recommended for a home video surveillance system, dashcam and other vision applications demand high resolution.

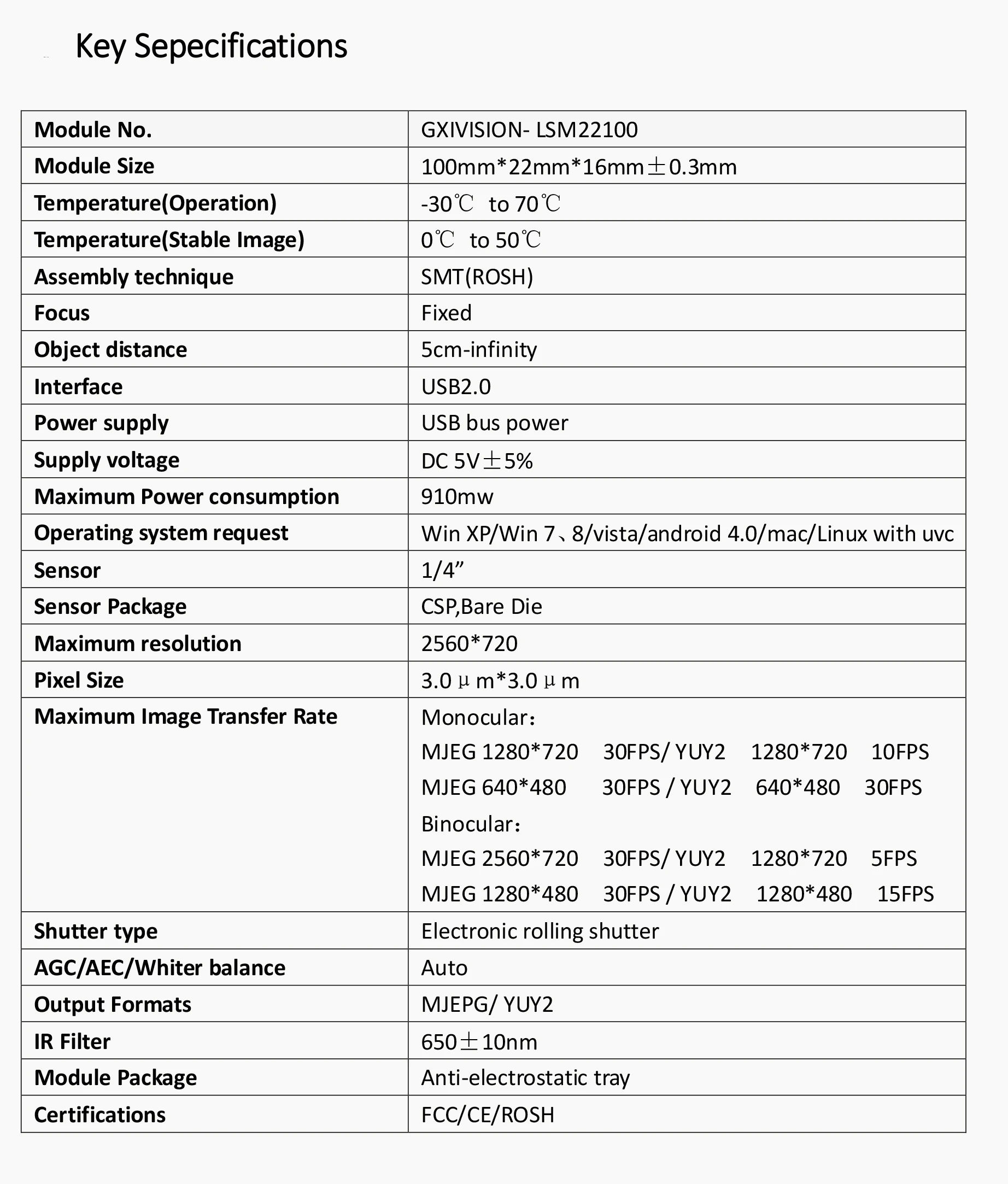

Specification：

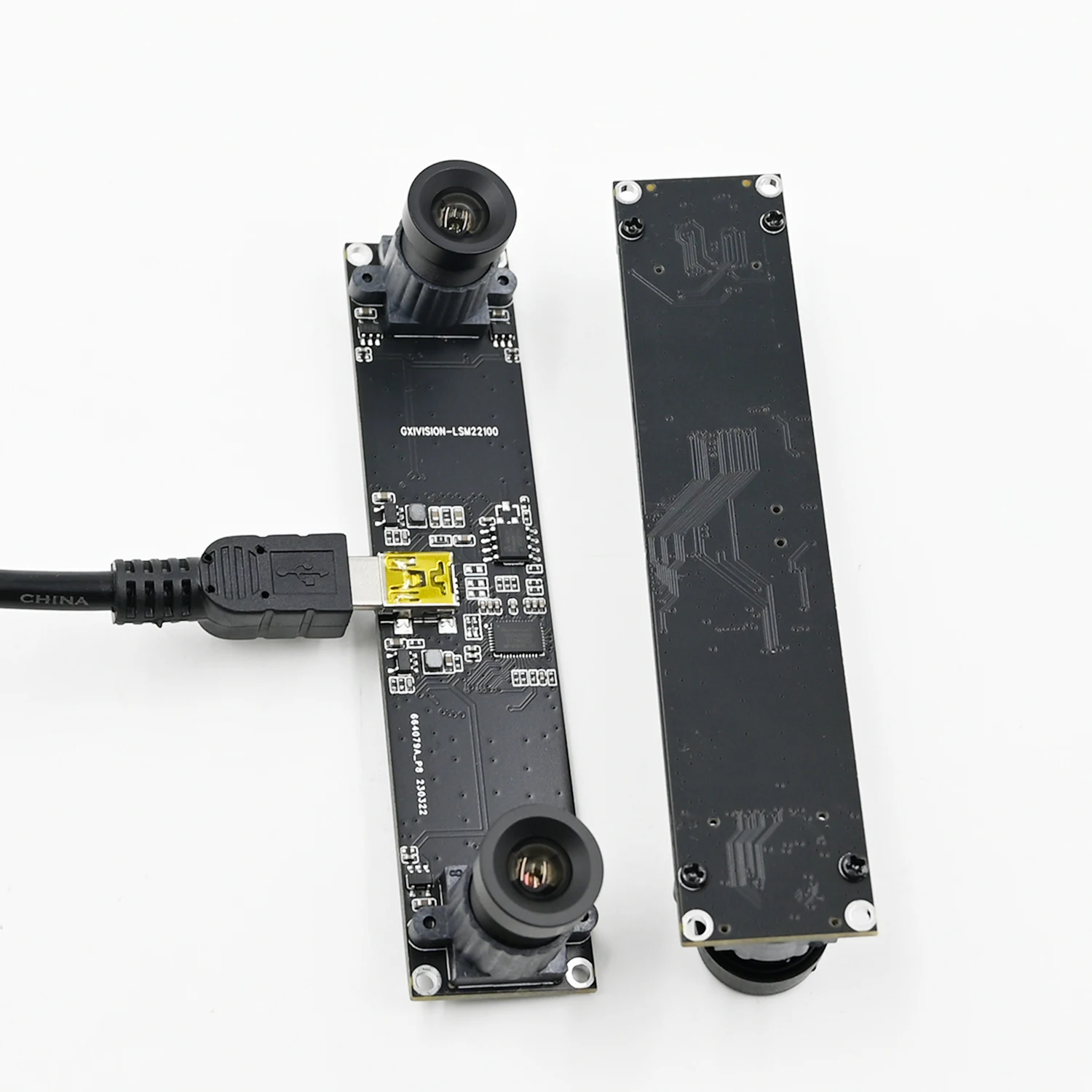

Product Display：
More you may like
How to use the camera；
Camera Connect with USB port , then open your camera software and select this camera as video input.
Parameters changable: (Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure...)
General software for USB Camera:
Blue iris, ContaCam, Yawcam,iSpy,Motion Eye OS,AMCAP, VideoCap ,Webcam Viewer, IP Camera Viewer, ZoneMinder,V4L2, Camerafi, VLC Player.
Recommend using software:
AMCAP/ VideoCap for Windows
V4L2 for Linux
FaceTime for MAC
Camerafi for Android
(Some Android are compatible, the others are not compatible)
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system,teaching system, Interactive system,automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system,Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope,Medical auxiliary equipment, etc.
