Product Details
expand_less
expand_more
SPECIFICATIONS
Application: Electric Wire conductor
Apply: Distribution Cabinet
Brand Name: WONKEDQ
Certification: CE,RoHS
Conductor Size: 24-12 AWG
Connection method: Push-in connection
Cross section, solid/soft Cable: 0.2-6mm²/0.25-4mm²
High-concerned chemical: None
Length/Wide/Height (mm): L102.9/H46/W6.2 mm
Material: Flame resistant Nylon PA66

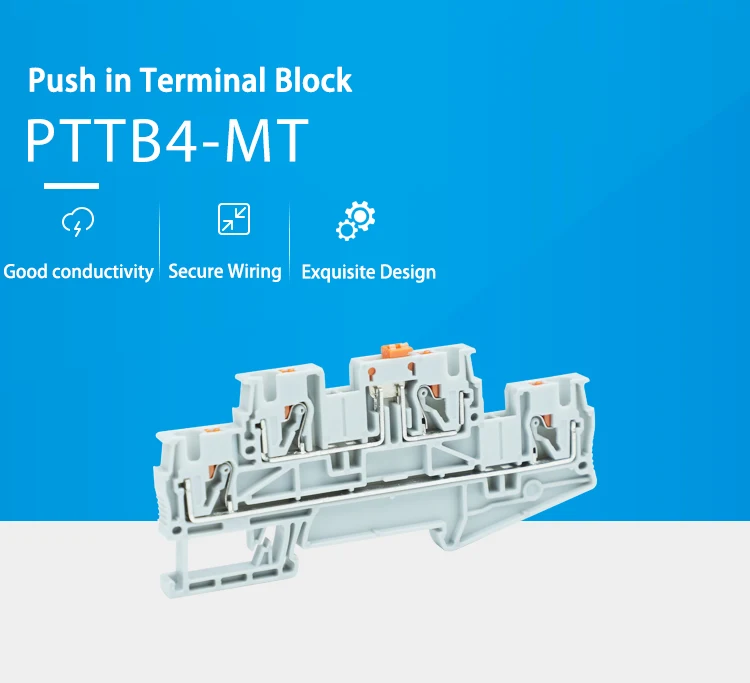

Model: Double-level terminal block PTTB 4-MT
Model Number: PTTB 4-MT,PTTB4-MT
Mounting Type: DIN Rail NS 35/7.5,Din Rail
Origin: Mainland China
Rated Voltage/Current: 500V 32A 4mm,500V 20A 4mm
Standard: IEC 60947-7-1
Type: Push-in Terminal,Push-in
Usage: Power Distribution Cabinet
is_customized: Yes
DESCRIPTION
ACCESSORIES ( Click the pictures to the links)
|
|
|
|
END COVER |

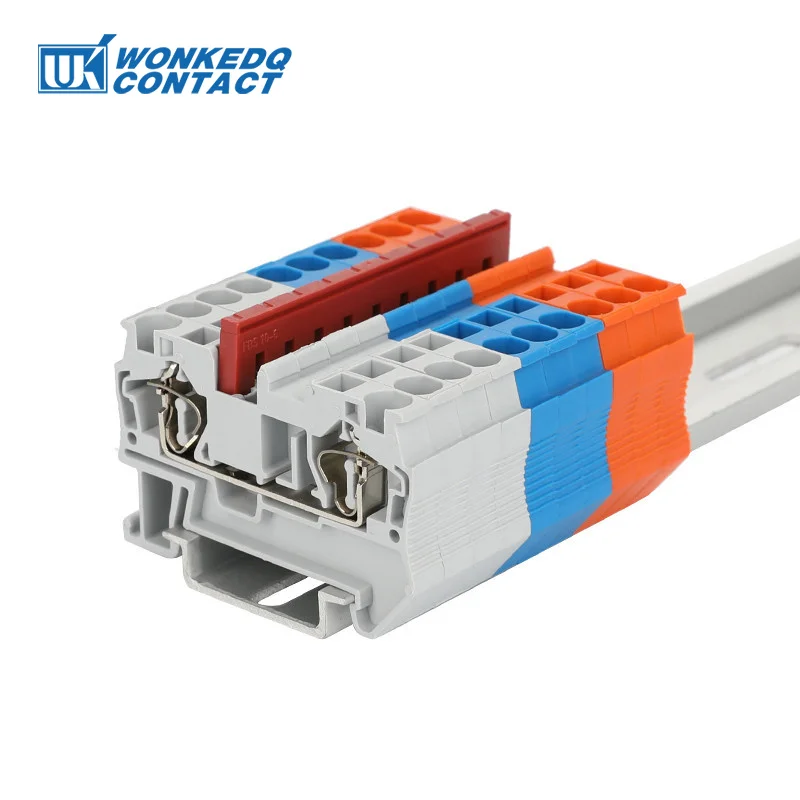

JUMPERS BRIDGE |

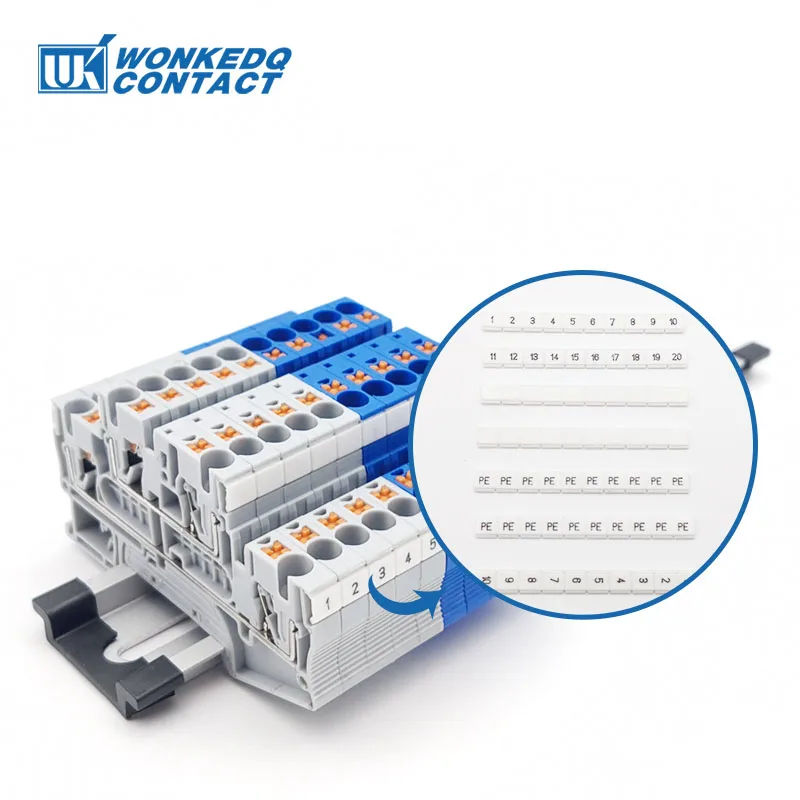

MARKER STRIPS |
END STOP |
|
|
|
|
MARKER CARRIER |
MARKER CLIPS |
DIN RAIL |
TERMINAL BLOCK |

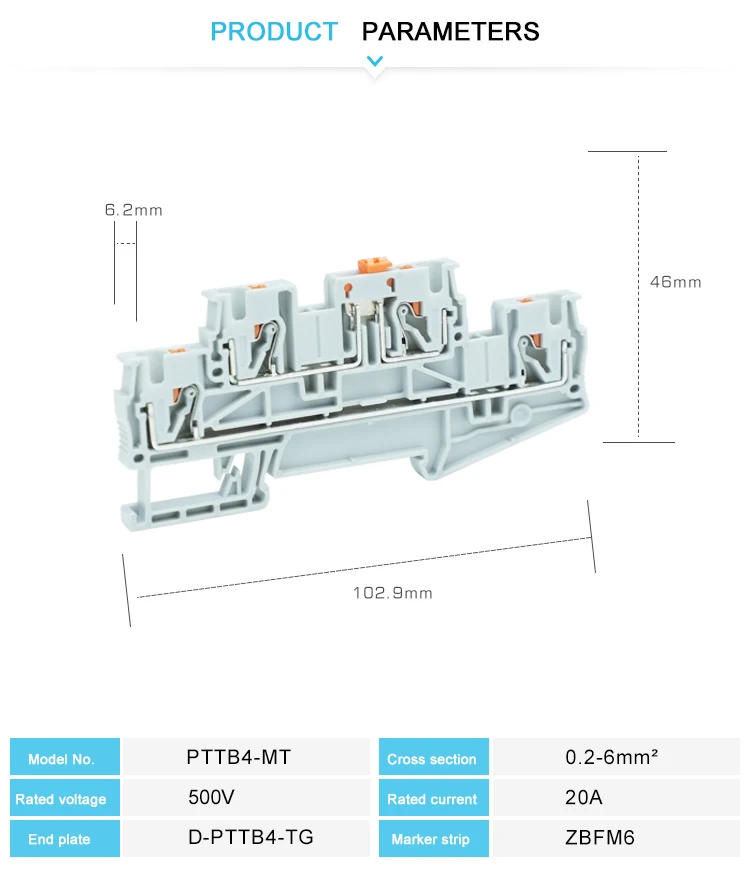

TECHNICAL PARAMETERS
Type No. |
Details |
Accessories |
PTTB 4-MT |
500V 32A 4mm
L102.9/H46/W6.2 mm |
End cover: D-PTTB 4-TG |
Plug-in bridge: FBS 10-6 | ||
Marker strip: ZBFM 6, ZB6(Top) |
Model Number |
PTTB 4-MT |
Color |
Grey, other color can be customized |
Length/Wide/Height (mm) |
L102.9/H46/W6.2 mm |
Connection method |
Push-in connection |
Material |
Nylon PA66 |
Rated Voltage/Current |
500V 32A 4mm
|
Cross section, solid/soft Cable |
0.2-6mm²/0.25-4mm |
Conductor Size |
24-12 AWG |
Mounting Type |
NS 35/7.5 |
Standard |
IEC 60947-7-1 |
LOGO |
Customized logo are supported |
Certification |
CE/RoHS/CQC/ISO 9001 |
