SPECIFICATIONS

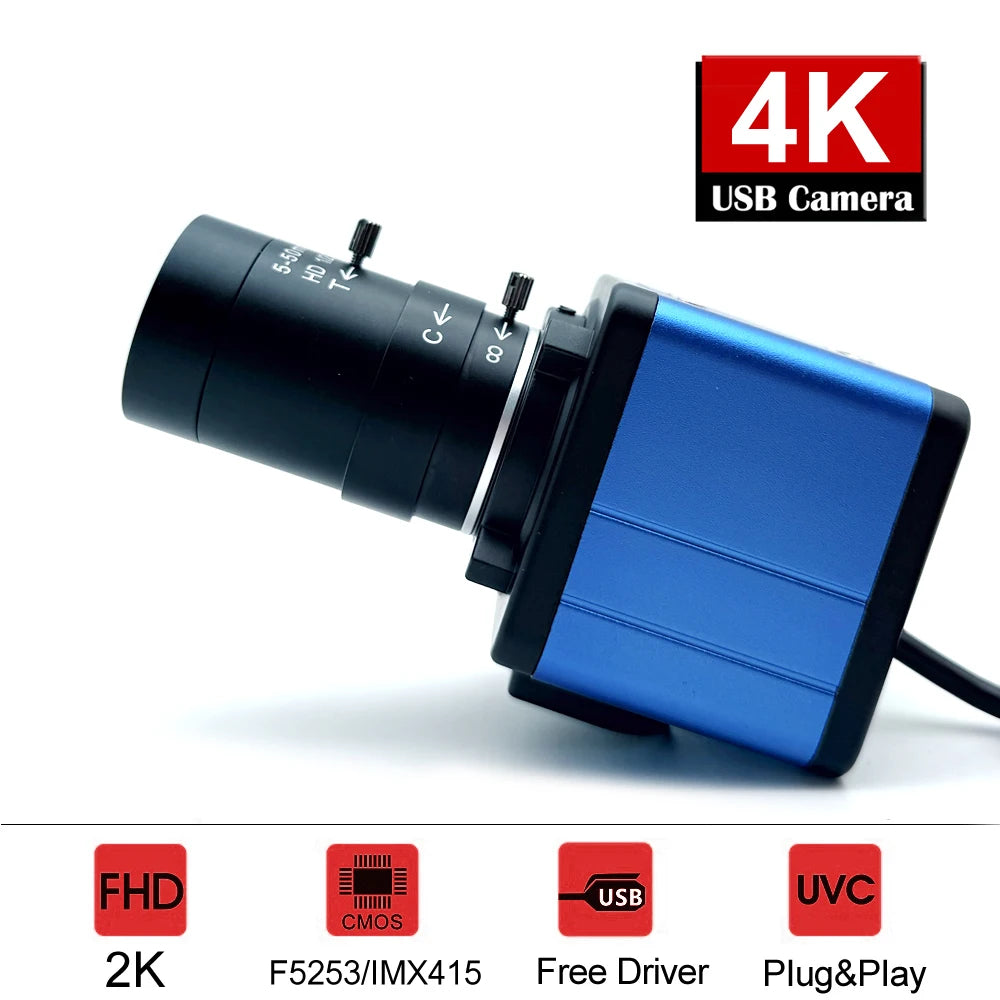

4K IMX415 USB Camera Features:

*CMOS imx415 sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate– deliver 30fps in 3840X2160 resolution.
*High quality CS lens, 4mm/6mm/2.8-12mm lens optional
*Low power consumption – ideal for portable equipment.
*UVC for use in Linux, Windows XP, WIN CE, MAC, Android.

Specification:

Sensor: CMOS imx415 (1/2.8” )
Max Resolution: 3840(H) *2160 (V)
Sensitivity: 1000mV/Lux-sec
Image area: 6100µmx4524µm

Picture format MJPEG / YUY2（YUYV）
Resolution & FPS
MJPEG
3840x2160 30fps , 2592x1944 30fps , 2560x1440 30fps , 1920x1080 30fps , 1280x960 30fps,
1280x720 30fps , 800x600 30fps , 640x480 30fps , 640x360 30fps , 320x240 30fps
YUY2
2560x1440 2fps , 2592x1944 2fps , 1920x1080 5fps , 1280x960 5fps ,1280x720 10fps ,
800x600 20fps , 640x480 30fps , 640x360 30fps , 320x240 30fps

Center Definition 1000LW/PH (Center)
S/N (Signal Noise Ratio) 26dB
Sensitivity 0.65V/lux-sec@550nm
Shutter Electronic rolling shutter / Frame exposure
Interface USB2.0 High Speed
AEC Support
AEB Support
AGC Support
Adjustable Parameters: Brightness, Contrast, Clarity, White balance, Backlight contrast, Gain, Exposure.
Lens Size: 2.8-12mm/5-50mm Manual Varifocus Lens (Optional)

Relative Illumination (Sensor): 70%
IR Filter wavelength: 650±10nm
Power Supply & Connector USB BUS POWER 4P-1.25mm/2.0mm socket
Power DC5V
Current 200mA
PCB Size: 38mm × 38mm
Storage Temperature: -20°C to 65°C
Working Temperature: -10°C to 60°C
Operating System Win XP/Vista/Win7/Win8 / Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later/Android 4.0 or above with UVC

--------------------------------------------------------------------------------------------

2K 4MP F5253 USB Camera:

*F5253 4.0MP sensor for high quality image and low power consumption.
*High speed USB 2.0 interface for high resolution PC camera interface.
*high pixel technology for sharp image and accurate color reproduction.
*low light performance – ideal for any lighting condition.
*Super small outline and thin profile for embedded applications.
*High frame rate MJPG– deliver 30fps in 2560x1440 resolution, 30fps in 1920X1080 resolution.
*High quality lens, true and undistorted color image.
*Low power consumption – ideal for portable equipment.
*UVC for use in Android, Linux, Windows , MAC, SP2 or above.
*Camera with UVC, Drive-free.

used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, smart box TV BOX, advisement player, LED display, automaticvending machine, notebook, Tablet external, evaluator, Medical Equipment, on-the-spot lawenforcement, simple security system, teaching system, Interactive system,automobile data recorder. Project video capture, attendance machine, Voting system, High speed videoshooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HDsurveillance, endoscope, Medical auxiliary equipment, etc.
